SPECIFICATIONS

Fuel Capacity: 0.9L

Hign-concerned Chemical: None

Impact Energy: 20-45J

Impact Frequency: 1200-2200r/Min

Material: ABS, Iron, Aluminum and Alloy Steel

Model Number: Jh-55

Power Source: Gasoline Powered

Starter System: Hand Pull Start

Usage: SOIL

Piling work is usually carried out in relatively harsh environments, where traditional piling methods are very unsafe and inefficient. Fortunately, with this gasoline pile driver, your piling work can be very simple! The 900W, 32.7cc two-stroke engine provides sufficient power to help you save time and energy, while the thoughtful shock-absorbing cylinder and one-click shutdown ensures your safety and comfort during use.

Details

Two Sleeves: Two different sleeve sizes allow for a wider range of applications. The threaded connection makes it easier to change.

Fuel Tank: The large 0.23gal translucent fuel tank avoids frequent refuelling and makes it easy to keep an eye on fuel usage.

Application

It is suitable for a range of piling projects in gardening, road fencing, agricultural fencing, orchard support, geophysical exploration, construction, vegetable planting, fence protection, etc.

How to Operation

1.First, add the oil mixture to the tank.
2.Install a sleeve of the right size for the pile to be driven.
3.Check that the flame-out switch is in the "-" position.
4.Close the damper when the machine is cold to start, and you can open the damper to start when the machine is hot. Wait for the machine to be normal and then open the damper to use.
5.Press the oil bubble to suck up the oil pipe until the air is eliminated.
6.Start the machine and pull the starter continuously.
7.Set the hand grip to the right position.
8.Add oil to the throttle before working until the engine is normal and you can work when you hear a crisp sound.
9.Start working. Hit the depth you want and stop.
10.Stop working by just turning off the flameout switch to the “0” position.

Specifications

Model: Jh-55
Material: ABS, Iron, Aluminum and Alloy Steel
Color: Red/Blck
Power Source: Gasoline Powered
Starter System: Hand Pull Start

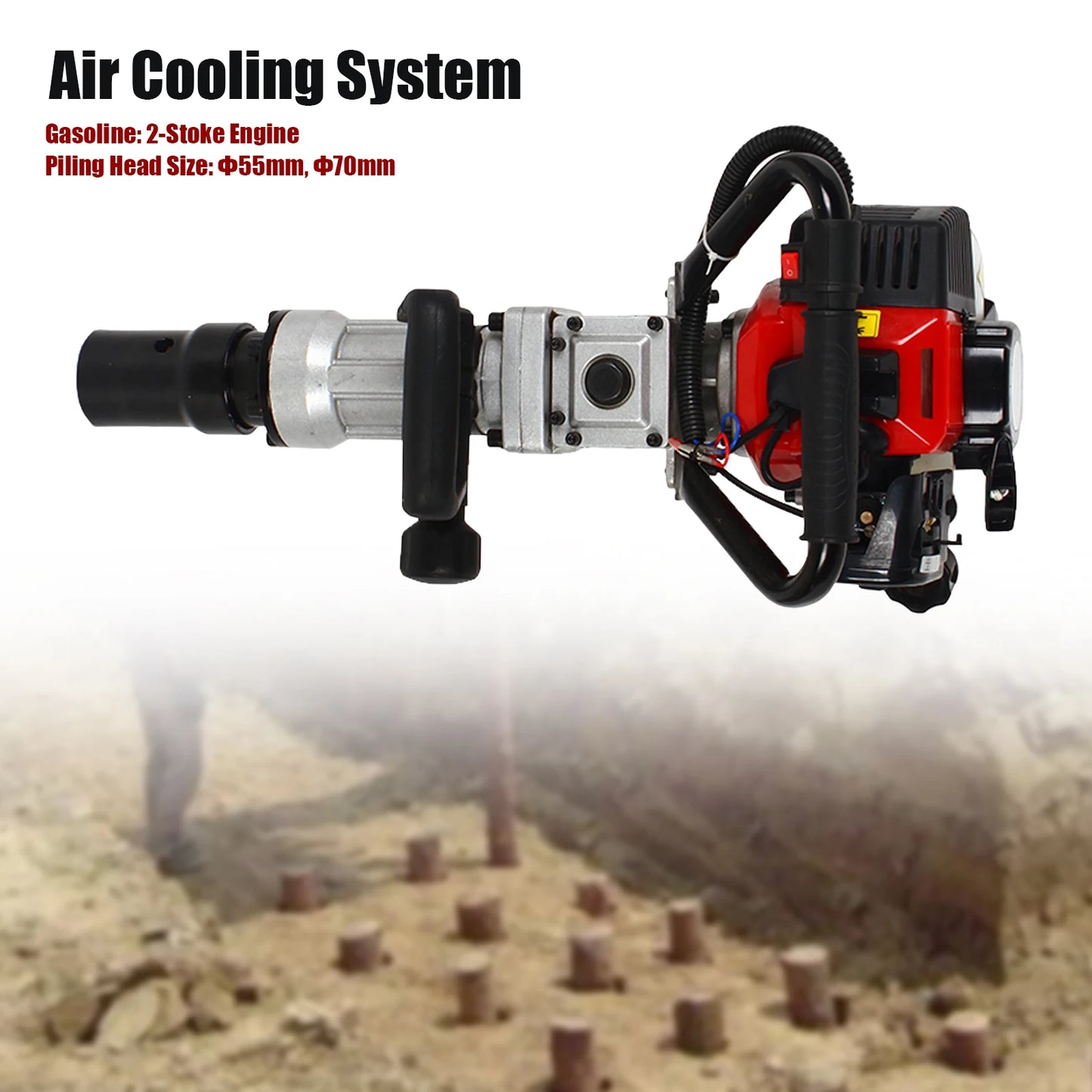

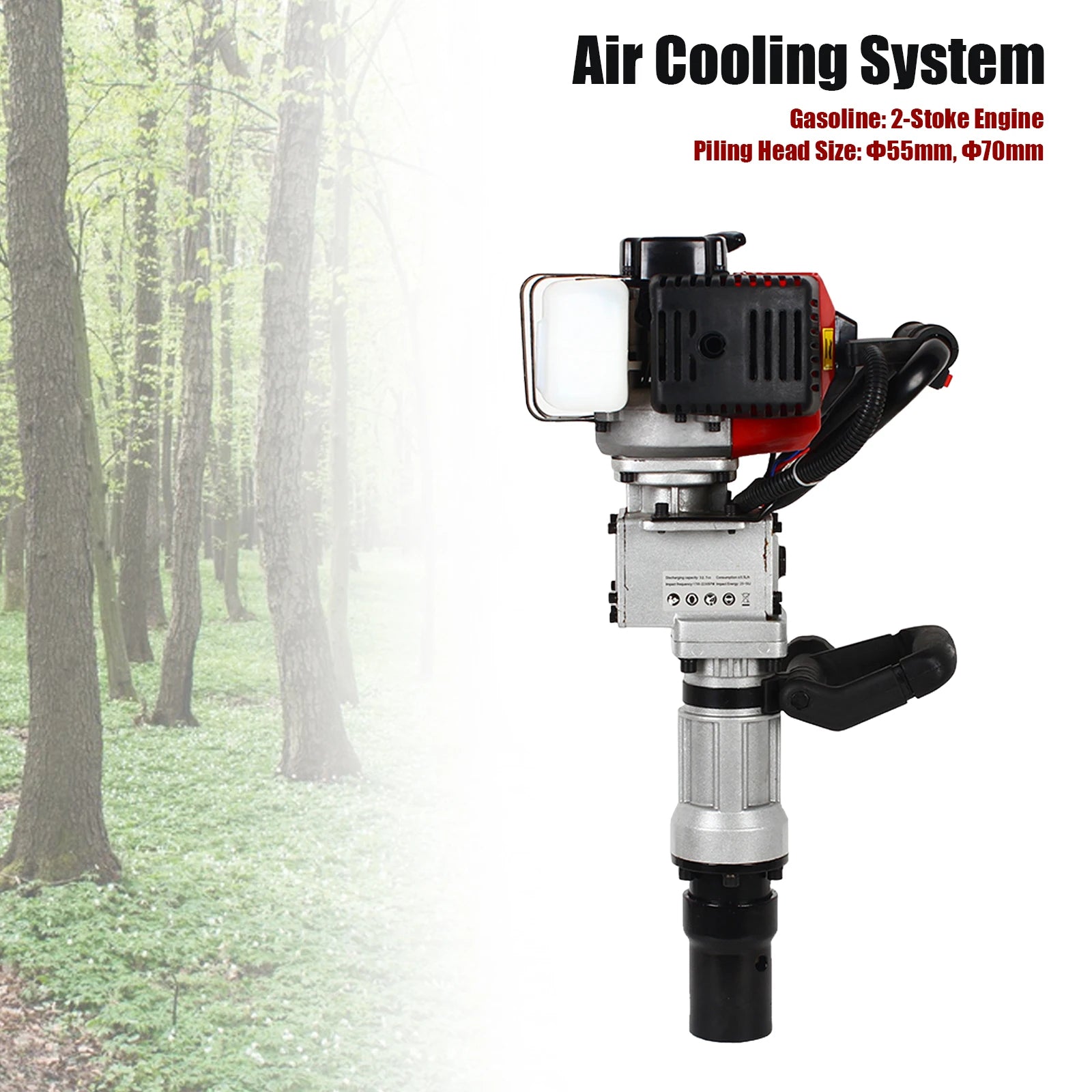

Engine Type: 36*32mm/1.41*1.25in, Single Cylinder, Air Cooling, 2-Stroke
One Function Tool Holder: Sleeve
Impact Frequency: 1200-2200r/Min
Impact Energy: 20-45J
Piling Head Size: φ55mm/2.16in, φ70mm/2.75in
Fuel: Oil Mixture (Gasoline:2-Stoke Engine Oil=25:1)
Fuel Capacity: 0.9L/0.23gal
Fuel Consumotion Rate: ≤0.5L/h(0.13gal/h)
Displacement: 32.6cc
Max. Power and Speed: 0.9kw/8500r/Min
Max. Torque and Speed: 1 .45N.m/5300r/Min

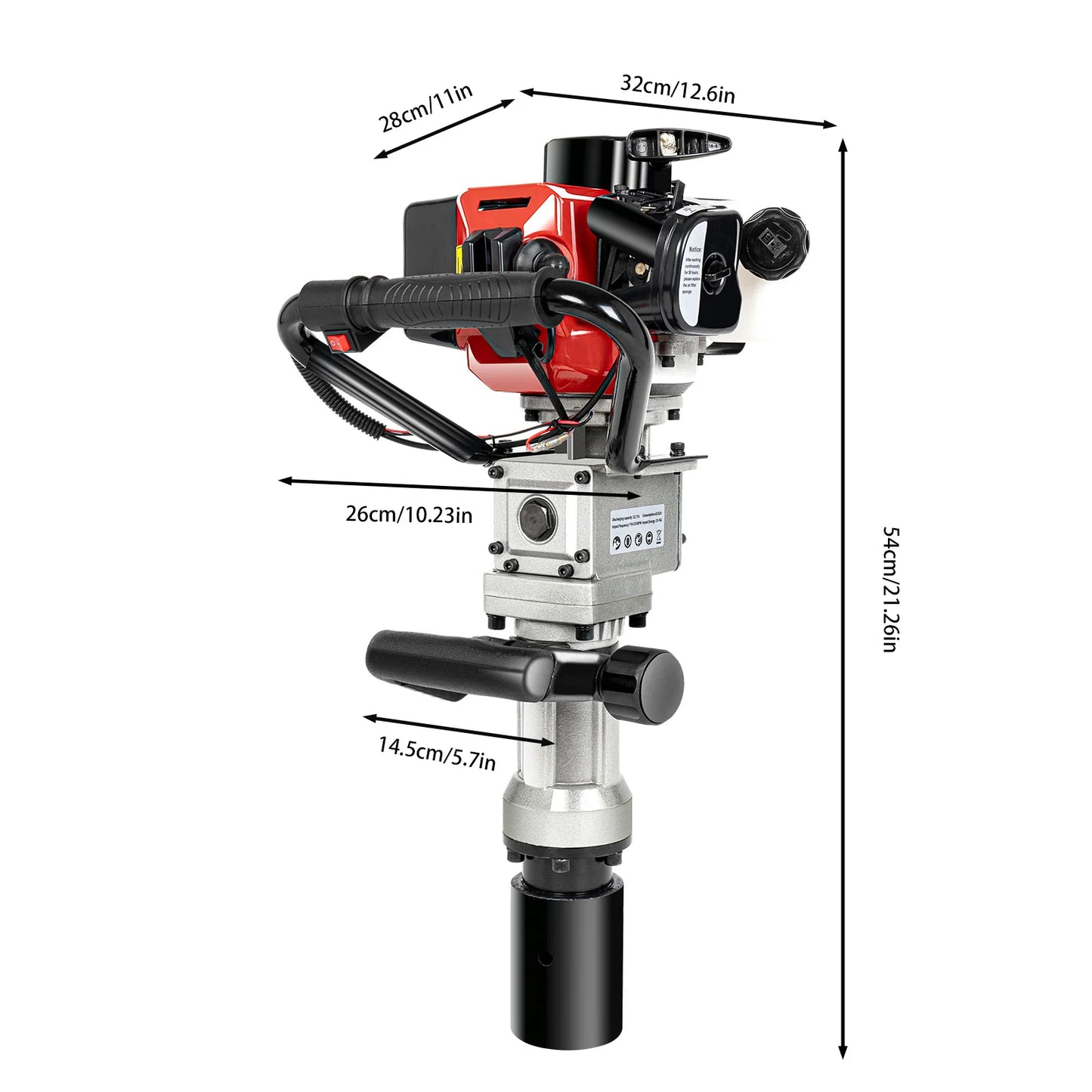

Product Size: 55*27*31cm/21.65*10.62*12.2in
Main Handle Size(L*W): 26*20cm/10.23*7.87in
Secondary Handle Size: 12*15cm/4.72*5.9in
Packing Size: 64.5*34*37cm/25.39*13.38*14.56in
Sleeve Length: 11cm/4.33in
Net Weight: 13kg/28.66lbs

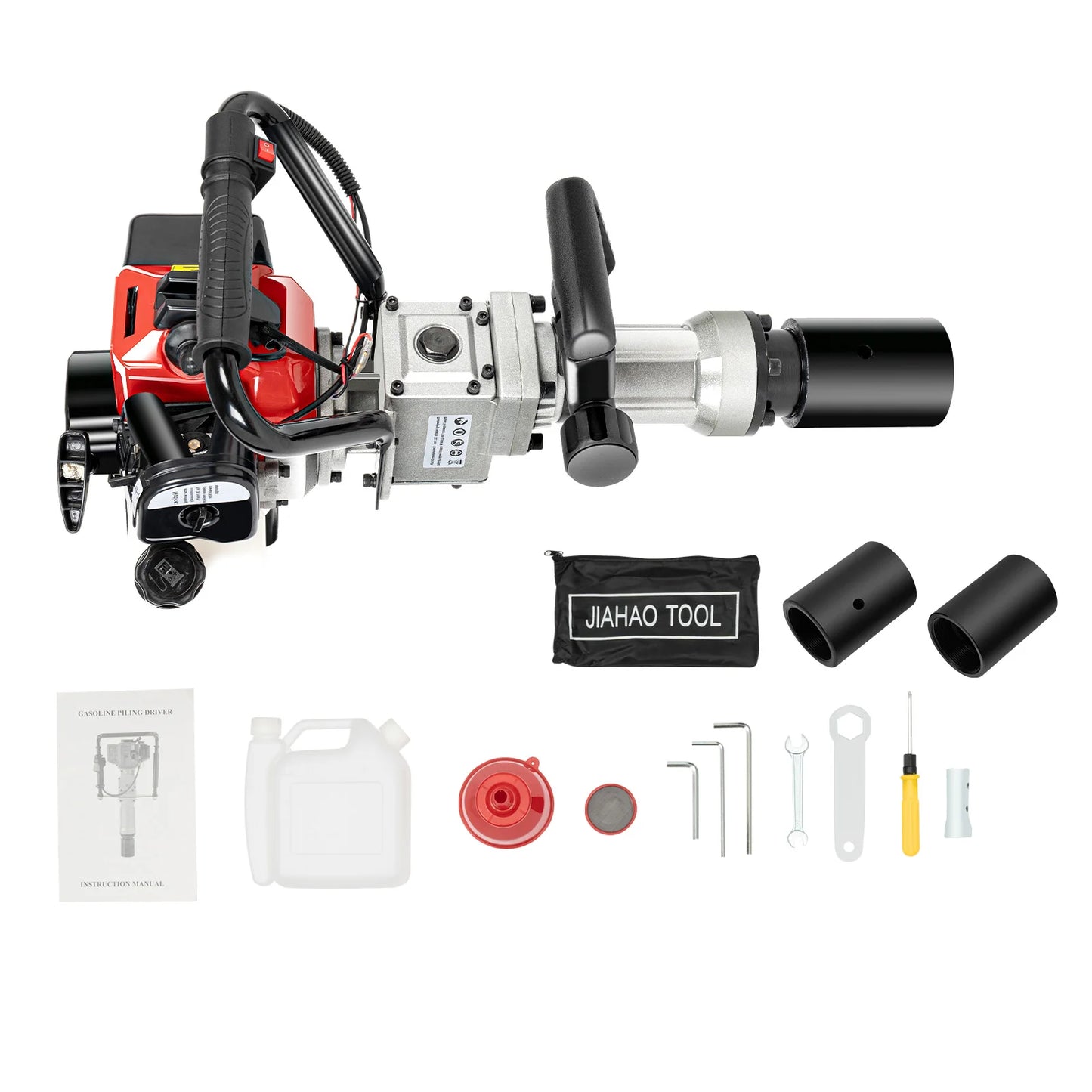

Package Included

1* Gasoline Pile Driver
2* Sleeves
1* Proportioning Pot
1* Funnel
1* Tool Bag
1* Strainer
All Needed Accessories

Notes

1.The carburettor must be cleaned after every 100 hours of operation before use. The air filter sponge must be cleaned after 36 hours of operation. The attached manual is universal version for several products, thus the accessories introduced will be slightly different. The product you received is complete. If you have any issue about installation/operation, please contact seller for help.
2.If not used for a long time, the fuel and oil must be cleaned out of the tank and packed in a plastic bag to avoid dust and moisture entering the machine and affecting its use.
3.Pay attention to whether the oil inlet pipe is full of oil before use.
4.After starting up, you need to empty the throttle and let the machine start for a while before starting work.
5.This product cannot be used as a tool for breaking stones.
6.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
